Everything You Need
82° Flat-Head

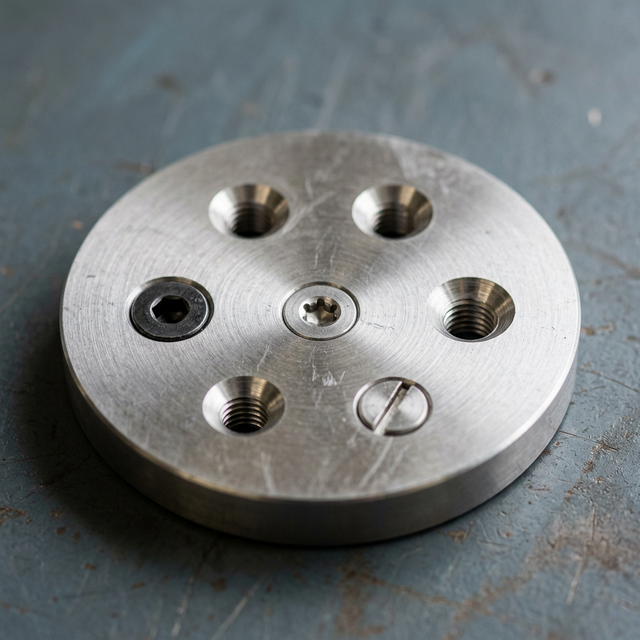

The most common countersink for flat-head machine screws. Seats flush with the surface.
90° Metric
Standard for DIN 7991 / ISO 10642 socket-head countersunk screws.
Deburr Chamfer

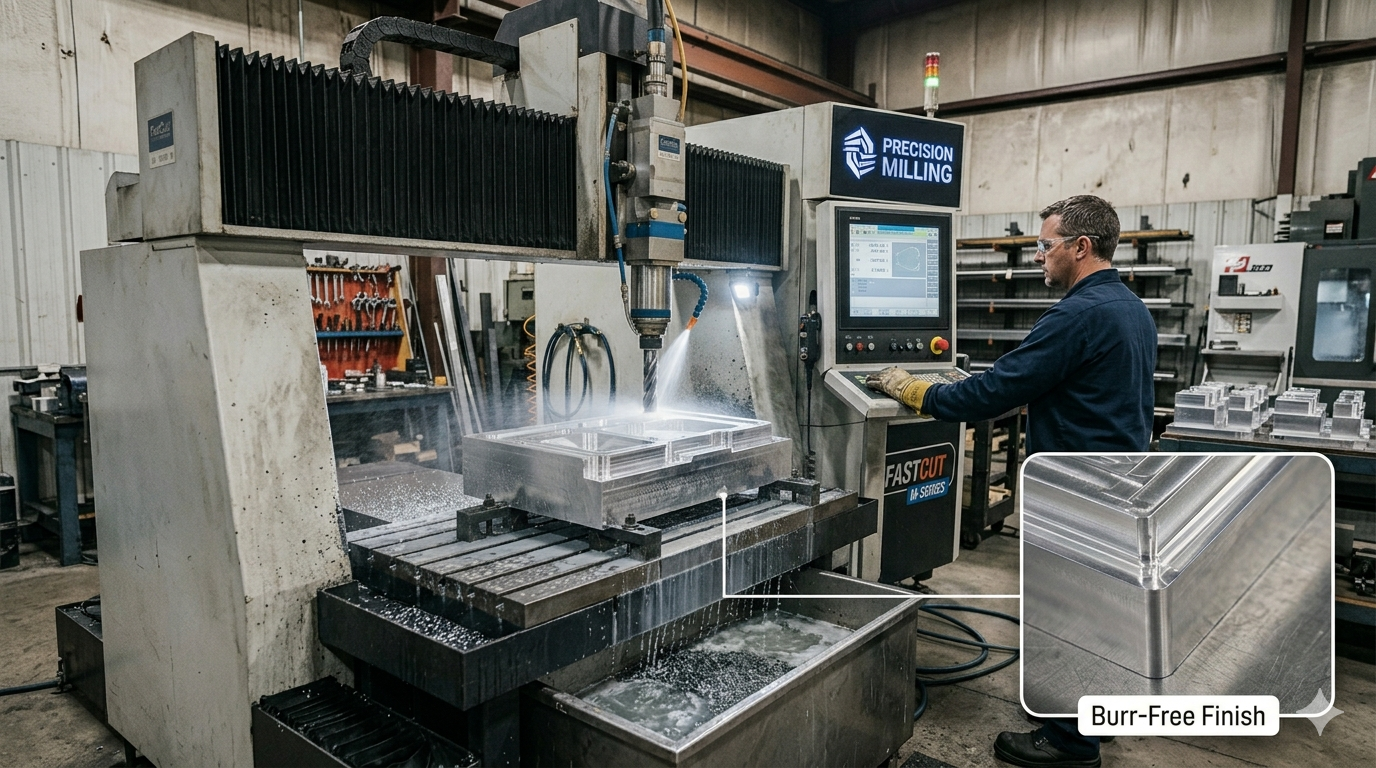

A light 45° chamfer to break the edge of drilled or laser-cut holes. Prevents burr injury and eases fastener entry.
Precision Materials
Every material below is stocked and ready to run. Grades, thicknesses and finishes come straight from our inventory system.
| Material | Stocked thickness | Note |
|---|---|---|
| CRCA Mild SteelEngineer | 0.8 – 9.5 mm (11 sizes) | Compatible |
| Stainless Steel 304Engineer | 0.8 – 9.5 mm (9 sizes) | Compatible |
| Aluminium 5052Engineer | 1 – 9.5 mm (10 sizes) | Compatible |
| Aluminium 6061Engineer | 1 – 9.5 mm (9 sizes) | Compatible |
Know What You Pay
This service is quoted by our engineers. Here is what drives the price.
| Material | 1 pc | 10 pcs | 100 pcs |
|---|---|---|---|
| CRCA Mild Steel, 2 mmInstant | ₹1,000 | ₹139 | ₹59 |
| Stainless Steel 304, 2 mmInstant | ₹1,036 | ₹247 | ₹163 |
| Aluminium 5052, 2 mmInstant | ₹1,000 | ₹157 | ₹77 |
| Acrylic, 3 mmInstant | ₹1,000 | ₹150 | ₹70 |
| MDF, 3.2 mmInstant | ₹1,000 | ₹103 | ₹25 |
Price per part for a 200 × 100 mm plate with 4 holes, standard 3-day turnaround, excl. GST. One-offs carry the order minimum.
This operation is bundled with your cutting or machining order. No separate minimum.
| Turnaround | Lead time | Price |
|---|---|---|
| EconomyInstant | 7 working days | 18% less |
| StandardInstant | 3 working days | Standard price |
| ExpressInstant | 2 working days | +35% |
| RushInstant | 1 working day | +75% (more when the shop is busy) |
| Same DayInstant | Same day | +140% (more when the shop is busy) |

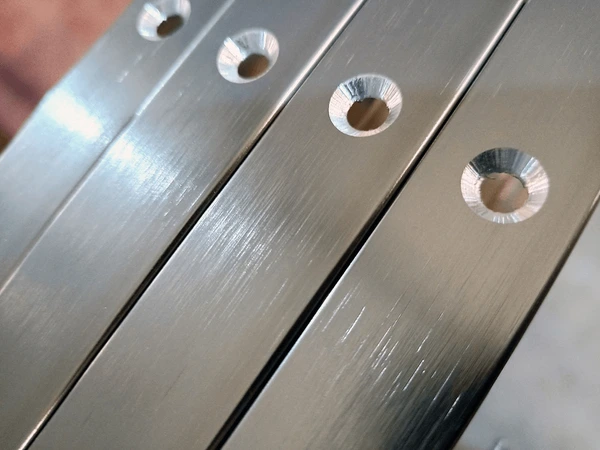

Design for Countersinking
Specify the angle and depth clearly so the screw sits flush.
Angle Match
The countersink angle must match the screw head: 82° for ANSI, 90° for DIN/ISO. A mismatch leaves a gap.
Depth
The countersink must be deep enough for the head to sit flush but not so deep it weakens the material.
Edge Distance
Keep the countersink centre ≥ 2× major diameter from any edge to prevent blowout.
How It Works
CAD File
STEP / DXF / DWGQuote & DFM
Real-time pricingManufacturing
CNC / Laser / Bend& Delivery
Pan-India shippingEngineer Review
Hole positions, angles and depths are confirmed from your drawing.
Pilot Holes
Holes are laser-cut or drilled to the correct clearance diameter.
Countersink
CNC countersink tool chamfers each hole to the specified angle and depth.
Flush Check
A sample screw is seated to verify the head sits flush.
